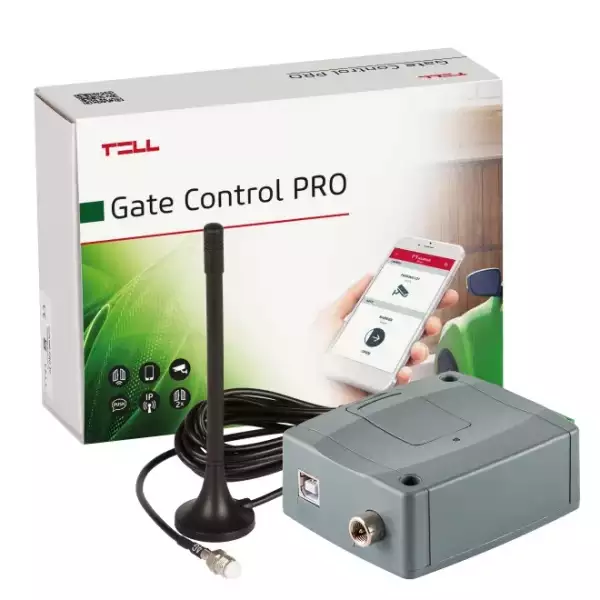

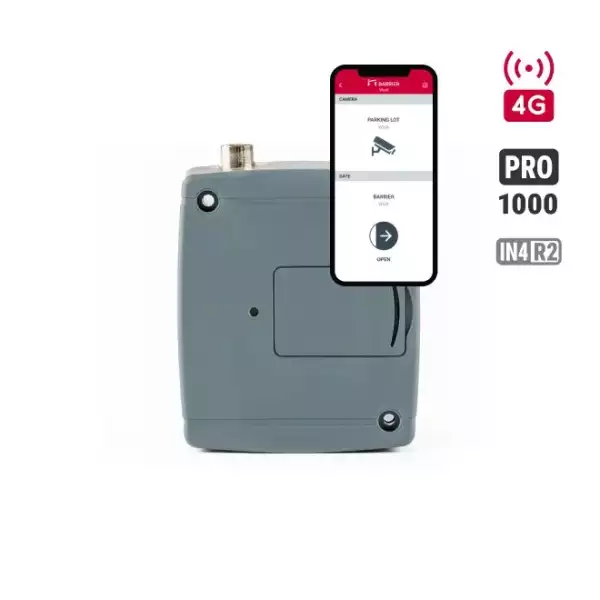

GSM Gate Control PRO 1000 – 4G controller

Description

The GSM Gate Control PRO 1000 – 4G controller is an advanced device that enables remote control of gates, doors, lighting and other electrical devices via the GSM network. Thanks to 4G technology, it provides fast and stable communication, which makes it a reliable solution for applications in places where there is no access to a traditional Internet network.

Key features of the device:

1. Control via phone: Possibility to remotely open and close gates or doors using a phone (SMS, phone call or application).
2. Support for up to 1000 users: The controller allows you to add up to 1,000 users, which makes it perfect for high-traffic facilities such as parking lots, housing estates or office buildings.
3. SMS notifications: Users can receive notifications of each action to increase the level of security and access control.
4. Access schedule: Ability to set schedules to limit access to selected hours, which is especially useful in places with specific working hours.
5. Security: The device maintains a list of authorized numbers to allow unauthorized access.
6. Wide range of applications: The controller will work well in both private and commercial facilities, enabling convenient access management without the need to use physical keys or remote controls.

Advantages of GSM Gate Control PRO 1000 – 4G:

• Simple and quick assembly and configuration.
• Ability to work in difficult weather conditions.
• Compatibility with many types of gates and electrically controlled devices.

The GSM Gate Control PRO 1000 – 4G controller is an ideal solution for people and companies looking for modern methods of access management and increasing the security of their facilities.

Main features:

• 4G/3G/2G communication

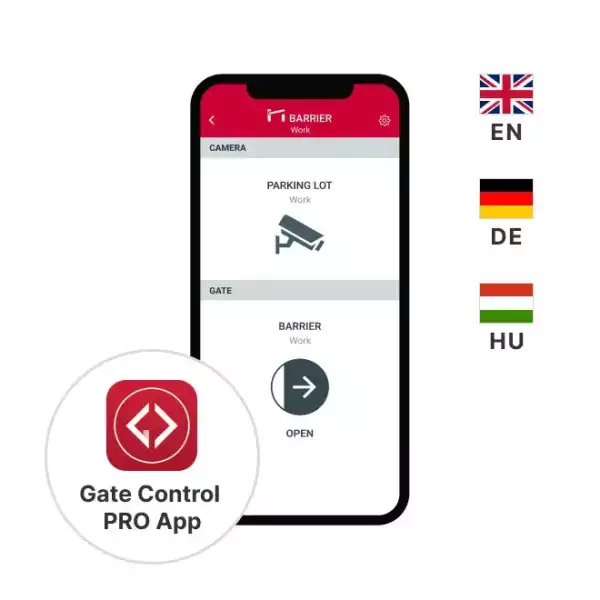

• Control gates and barriers using a mobile phone using a smartphone application or GSM connection
• Possibility to control two different gates or barriers with the same device
• 1000 users variant
• Notification sent if a gate or barrier fails to open or close
• Display the status of open/closed gates or barriers to display notifications in the smartphone application
• Reporting the status of 4 contact inputs by e-mail, SMS or telephone
• Sends ringer activity to your mobile phone
• ONVIF camera support to share camera photos on your smartphone app
• Configurable user permissions and entry periods
• Configurable automatic time control
• Log events and send reports by email

Technical Specifications:

• 4G/3G/2G/GSM transmission channel
• Frequency band 900/2100 MHz @UMTS 900/1800 @ GSM / GPRS
• Operating temperature -20 ºC – +70 ºC
• Supply voltage 12-30 VAC/DC
• Current consumption (maximum) 500 mA at 12 VDC
• Current consumption (nominal) 120 mA at 12 VDC
• Housing Plastic
• Compression connector design
• Dimensions 84x72x32 mm
• Weight 200 g

Application area:

automatic gates, garage gates, barriers, parking lots, garages, multi-storey car parks, residential parks

Entries

• Contact inputs 4
• Configurable inputs (NO/NC) yes
• Adjustable input sensitivity yes

Exits

• Relay outputs 2)
• Output control via free GSM connection yes

Notifications

• GSM voice connection yes
• Sending SMS messages yes
• Sending emails yes
• Active notification yes

programming

• USB/IP programming method
• Programming software yes

​Users

• User telephone numbers for forwarding incoming SMS messages 1
• User telephone numbers for reporting 4
• User telephone numbers for exit control 1000 / Unlimited

Other features

• Built-in internal clock yes
• Safeword yes
• Event logs / number of events stored Yes / 1200
• Caller ID yes
• Mobile application yes
• Individual email sending with a predefined message yes
• Individual sending of SMS to users' phone numbers with a predefined message yes
• Periodic test report yes
• IP camera support yes
