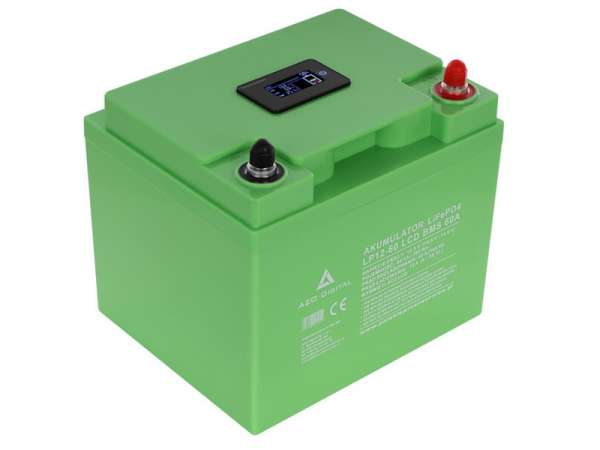

LIFEPO4 battery LP12-60 60AH 12V 60A LCD

Description

The Lifepo4 LP12-60 60AH 12V 60A battery has been designed for solutions that require a stable power source and long-term reliability. They provide excellent work parameters and high performance. They are a great solution, e.g. for owners of small boats with electric drive. Perfect for fishing, camping as well as longer tourist expeditions.

Installed inside BMS It allows you to supply devices with a power of even 800W. It monitors on an ongoing basis voltage and cell temperature both during charging and discharge. In the event of exceeding critical values, the system cuts off the power supply, thus ensuring the safety of the battery and the work environment.

Installed in the housing LCD display In a clear way, it allows you to monitor the key battery parameters, such as voltage, temporary current, temperature and charge level, ensuring full control and avoiding unpleasant surprises.

Basic product features:

• Type: Lifepo4 battery
• Output voltage: 12 VDC
• Max. continuous output current: 60 A
• Capacity: 60AH
• Power connector: M6
• Casing: ABS
• Max. Charging current: 60 A



Typical use of Lifepo4 batteries

• Electric vehicles: motorhomes, scooters, quads
• Electric boats
• Gardening equipment
• Photovoltaic installations
• UPS emergency power supply
• Cash register printers, alarms

Battery technical parameters

• LIFEPO 4
• Nominal voltage: 12.8 VDC
• Nominal capacity: 60 AH
• Nominal capacity: 768 WH
• Work voltage: 10.8 - 14.6 VDC
• Charging voltage: 14.6 VDC
• Recommended charging voltage: 13.8 V
• Maximum charging voltage: 14.6 VDC
• Recommended discharge voltage:> 11.2 VDC
• Critical discharge voltage: 10.8 VDC
• Recommended charging current: <15 A
• Maximum charging current: 60 A
• Maximum continuous discharge current: 60 A
• Maximum discharge current: 120 A
• Efficiency:> 98 %
• Self -delay (month): <3 %
• Built -in BMS: Yes
• Bluetooth communication: no
• Life (0.2C, 25 degrees C 100% DOD): 4,000 cycles
• Vitality (0.2c, 25 degrees C 80% DOD): 6,000 cycles
• Connecting serial batteries: yes, maximum 4 pieces
• Heating function: none
• Disloading temperature: -20 St. C ÷ 55 St. C
• Charging temperature: 0 St. C ÷ 55 St. C
• Storage temperature: -20 St. C ÷ 45 St. C
• Dimensions: 195 x 165 x 180 mm
• Weight: 5.7 kg
• Connector: M6
• Tightness class: IP64
• Housing material: ABS

BMS technical parameters

• And security protection: 65a (delay 20 sec.)
• II reloading: 150A (delay 2 seconds)
• And discharge protection: 65a (delay 30 seconds)
• II discharge protection: 150a (delay 2 seconds)
• Cover protection: 14.8 V (delay 1 sec.)
• Impracement protection: 10 V (delay 1 sec.)
• Thermal protection inclusion: above 95 degrees C
• Thermal protection exclusion: below 85 degrees C



LIFEPO 4 BATTERY LP12-60 60AH 12V 60A. Electrical device - install and operate in accordance with the requirements contained in the product card and installation instructions.
