Eco Solar Boost MPPT-3000 3KW solar converter

Description

Solar converter Eco Solar Boost MPPT-3000 3KW allows the direct use of photovoltaic panel systems to power resistive heating devices such as electric boilers, radiators, heating mats, etc.

The system is simple, it only requires connecting the appropriate number (from 4 to 9 pcs) of typical photovoltaic panels with an operating voltage of approximately 32V or an appropriate number of others, and an energy receiver, e.g. an electric boiler, underfloor heating.

Direct current generated in panels, which cannot be used to directly power heating devices, is converted in the converter into alternating current, which can then be used to power heating devices.

Maximum The power power is 3kW, the converter has Priority output number "1" and the dependent output number "2".

This allows you to connect two heating devices e.g. two boilers, one of which will be heated first, and the other when the thermostat of the first one stops receiving energy from the converter. Thanks to the implemented MPPT function, the converter will automatically adapt to
heater power and will set its operating point so that the energy received from the photovoltaic panel system is maximum.

Basic product features:

• TYPE: DC/AC
• Supply voltage: 120 to 350 (VDC)
• Output voltage: 120 to 350 (VAC)
• Maximum power: 3 kW
• Output voltage waveform: Modified SINUS
• Cooling: Active - fan

ATTENTION !    Heating devices with regulators electronic They can be powered Only from exit number 1.

The table below presents the way the selection of the optimal heater Depending on the power and voltage of the PV system. Optimal heater selection guarantees the greatest effectiveness PV system for heating water.

As you can see real power of 230V heaters It depends on the PV system voltage, green They are marked Optimal heaters, orange too weak, red too strong.

Technical data

• Input voltage [VDC]: 120 to 350 (VDC)
• Output voltage [VAC]: 120 to 350 (VAC)
• Maximum power: 3 kW
• MPPT function: Yes
• Connection of PV panels: serial or in series parallel
• Voltage course at the output: Modified sinus
• VAC output No. 1: priority
• VAC output No. 2: dependent *
• Protection under/overnovation: yes
• Thermal protection: yes
• Overload protection: yes
• Working temperature: -25 ° C ~ +55 ° C
• Efficiency:> 94%
• Cooling: Active

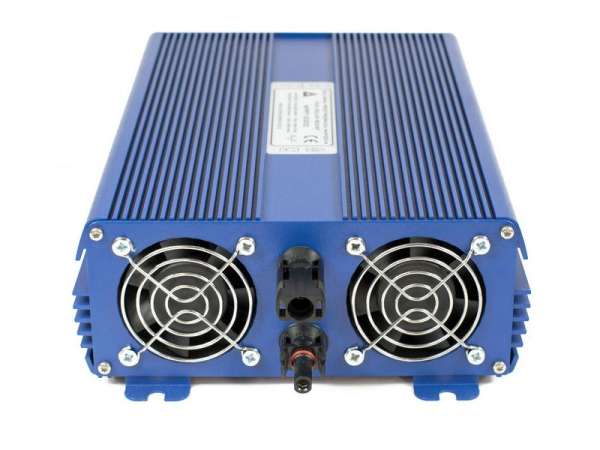

• Power connector: MC4

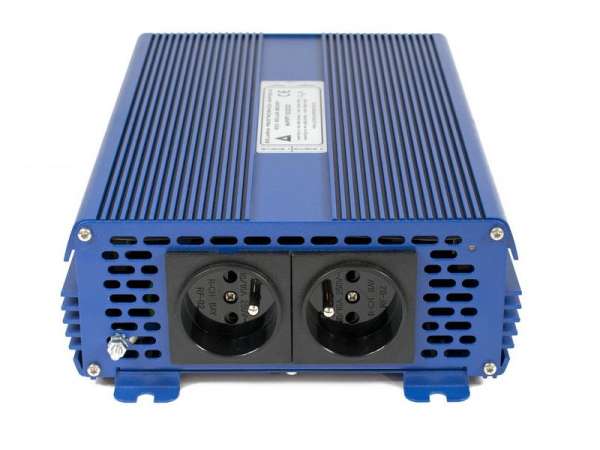

• 230V output socket: 2 x E (with a bolter)
• Casing: aluminum
• Protection degree (IP): IP21
• Dimensions of LXWXH [mm]: 290x190x80
• Weight [kg]: 2.4 kg



ECO Solar Boost MPPT-3000 3kW Solar Inverter. Electrical device – install and operate in accordance with the requirements contained in the product card and installation instructions.
