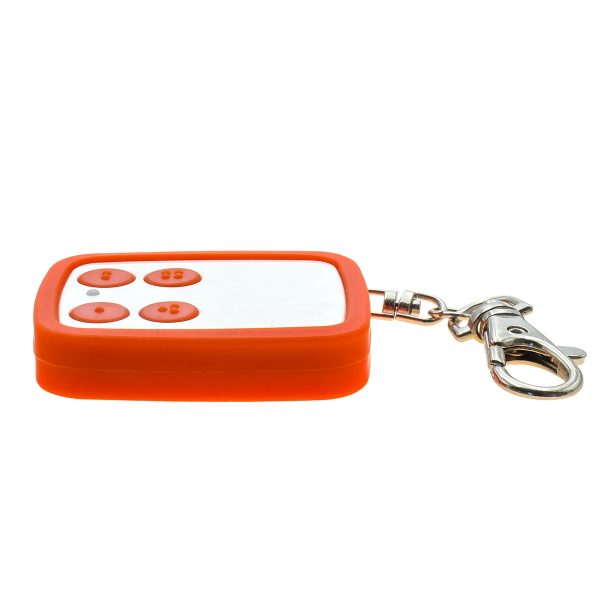

SMG KingGates remote control replacement

Description

Reliable SMG KingGates remote control replacement! With his company you won't have to worry about damage!

Every gate user should remember that a backup remote control is necessary, which will save us in a difficult situation in which our main remote control is destroyed. The ready, programmed remote control can easily be at home and waiting for its turn. The SMG KingGates replacement remote control is a high-quality remote control made of plastic and rubber, the combination of which gives us a really solid product resistant to unfavorable weather conditions.

Remote control model SMG-015-KingGates
Number of channels 4 buttons
Remote control frequency 433.92 MHz
Coding system variable code Remote
color black
Remote control power supply 2x CR2016 battery
Weight 10 g
Remote control dimensions 62x38x14 mm
Housing protection level against external factors IP 40
Housing type plastic and rubber
Cooperation with KingGates
Operating temperature -10°C +50°C

Notes on programming the remote control

The presented remote control works in the Keeloq dynamically variable coding system. In order for it to work with the drive and open the gate, it must be programmed. In virtually every case, programming such a remote control requires access to a radio receiver located in the closed housing of the control panel or nearby. If you intend to operate a housing estate gate drive using the remote control purchased from us, you need access to the radio receiver, which can be additionally secured access code. Without knowing the code, it is not possible to program the remote control, so we advise you to contact the estate administration to purchase a remote control that works with the estate gate drive.

Remote control programming

a) Procedure for entering the remote control into the radio receiver's memory:

On the radio, press the RADIO button for 2 seconds (the red LED will light up). Press and hold the button on the remote control that is to be programmed. While entering the remote control, the LED in the radio receiver blinks, when it stops flashing and starts to glow steadily, it is a sign that you can load another remote control. After programming all the remote controls, press the RADIO button again to exit the programming mode. The LED will turn off. If you do not do this, the programming procedure will end automatically after 10 seconds.

b) Procedure for copying a remote control from a remote control within the range of the radio receiver:

Come within 1-2 m of the radio with the already programmed remote control. Press buttons 1 and 2 at the same time and then release them. The LED will turn on and after about 2 seconds it will turn off. When the LED flashes, press both buttons simultaneously again and keep them pressed until the LED starts flashing red and green alternately. Within 10 seconds, press the button on the remote control you want program. Wait 10 seconds.
