Water heating kit in 6xPV MONO 2500 ECO SOLAR BOOST PRO

Description

The simplest water heating system in Bojlers available on the market.

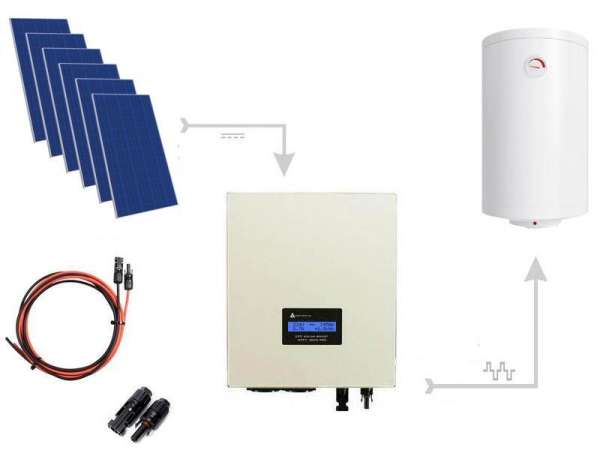

The set consists of 6 panels monocrystalline power 430W EVERYONE, converters Eco Solar Boost MPPT-3000 3.5kW PRO and a complete length wiring 25 meters completed on one side with connectors Mc4 and in the other, eye converter connectors.

The system is simple, only requires connection 6 pieces typical photovoltaic panels with working voltage of about 32V or the right amount of others, and an energy receiver, e.g. electric boiler, underfloor heating.

Converter ECO Solar Boost MPPT-3000 PRO is equipped with LCD display, which constantly informs the user about the parameters of the PV installation, such as:

• voltage of the PV panel system
• electricity generated by PV panels
• power fed at the output
• total energy produced on the current day
• total energy produced on the previous day
• total energy produced (measured from first switch-on)

Additionally, they are presented in a form on the display text messages current events and detected irregularities.
The direct current generated in panels, which cannot directly power heating devices, stays in the converter converted to alternating currentwhich can already be powered by heating devices.

Maximum The power power is 3kW, the converter has Priority output number "1" and the dependent output number "2".

This allows you to connect two heating devices For example, two boilers, one of which will be heated first, and the other in a situation where the thermostat of this first break will receive energy from the converter. Thanks to the implemented MPPT function, the converter will automatically adapt to
heater power will set its work point anyway so that the energy received from the solar panel system is maximum.

ATTENTION !    Heating devices with electronic regulators They can be powered Only from exit number 1.

Set contains:

• 6 monocrystalline PV panels 430W
• Solar converter Eco Solar Boost MPPT-3000 3.5kW PRO
• set of wires 25 meters with connectors
• Installation instructions

Technical data:

Solar voltage converter Eco Solar Boost MPPT-3000 PRO

• Input voltage [VDC]: 120 to 350 (VDC)
• Output voltage [VAC]: 120 to 350 (VAC)
• Maximum power: 3.5 kW
• MPPT function: Yes
• Connection of PV panels: serial or in series parallel
• Voltage course at the output: Modified sinus
• VAC output No. 1: priority
• VAC output No. 2: dependent
• Protection under/overnovation: yes
• Thermal protection: yes
• Overload protection: yes
• Working temperature: -25 ° C ~ +55 ° C
• Efficiency:> 96%
• Cooling: Active
• Power connector: MC4
• 230V output socket: 2 x E (with a bolter)
• Casing: aluminum
• Protection degree (IP): IP21
• Dimensions of LXWXH [mm]: 320x272x96
• Weight [kg]: 3.25 kg

Panels included:

• Nominal power PMAX (W): 430W
• Module performance [%]: 21.5
• Cells: mono 60 × 180 mm N-Type
• Module dimensions [mm]: 1722 × 1134 × 30
• Weight [kg]: 21.3

Electrical device - install and operate in accordance with the requirements contained in the product card and installation instructions.
