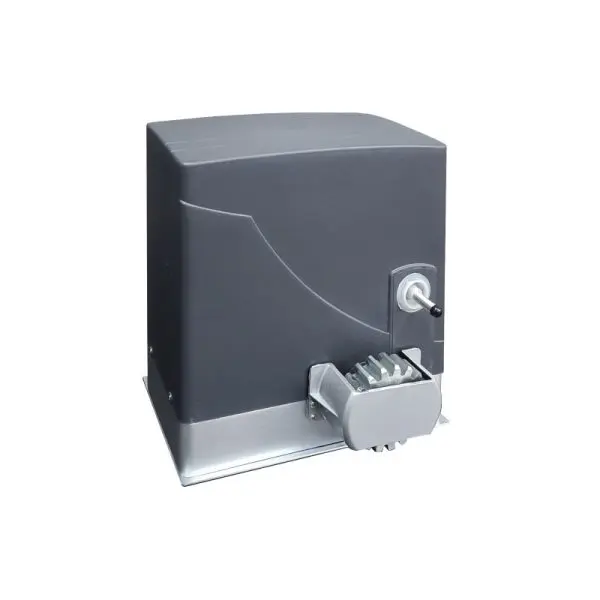

DRIVE FOR SLIDING GATES HATO 400Y – 600 KG

Description

HATO 400Y AUTOMATIC SLIDING GATES with slowdown (1 remote control, HELB11 control unit, photocells, lamp) up to 600 kg.

A line of drives for sliding gates HATO was designed for home and industrial use.

The drives are equipped with a gear wheel and an output force allowing for more intensive work in a short period of time.

In the event of a power failure, you can manually unlock the gate using the key provided.

A reliable drive for sliding gates for residential use, equipped with a magnetic encoder that ensures maximum safety and precision of the actuator.

Gear flagship actuator HATO 400Y is made of bronze and steel.

Features of the HATO 400Y sliding gate drive

• built-in control panel of Polish production
• slowdown when starting and stopping the drive (soft START/STOP)
• radio receiver memory – 28 transmitters
• bronze and steel gear
• possibility of connecting photocells
• mechanical limit switches
• equipped with an encoder

HATO 400Y automatic machine is equipped with a number of functions that improve everyday work.

Slowdown – a system that allows you to adjust the speed of the gate in the end positions. thanks to this solution, gate elements, such as mountings, handles, toothed strips, gear wheel or posts, extend their service life.

SBS sequential output – enables additional control of the gate using devices such as: reset (bell) button, control. via mobile phone, control via intercom, control. using an alarm control panel, or other external devices that are equipped with a low-current relay output can be integrated with the drive.

Magnetic limit switches – by eliminating the mechanical connection between the gate cams and the drive, we gain greater precision when setting the end positions, this solution eliminates the problem with snow on the switch, which could affect the correct setting of the gate. In practice, it speeds up the assembly of the entire control system.

Emergency unlocking – in the event of a power loss, you can easily unlock the drive, which will allow you to open the gate. To disengage the drive (the flap in the lower part), simply insert the key included in the set, then pull out the deployment flap. Now we can manually open and close the gate

Signal range – the set includes a remote control, the range of which is 25-35 m depending on the type of fence, you can additionally increase the signal range thanks to the antenna built into the lamp included in the set. It is important to make the extension using a 50 Ohm coaxial cable.

Drive power regulation – the drive is equipped with a potentiometer that regulates the driving force, which allows for individual adjustment of the power to the weight of the gate.

Foot traffic – the drive has two gate opening modes. standard opens the gate 100% and pedestrian mode opens the gate to a width of approx. 1 meter.

Security – Slide 10/15 is equipped with an encoder, a device that checks the correct opening and closing of the gate each time. Additionally, the set includes photocells that protect the gate from closing when there is an obstacle in the gate opening. Another protection is an overload sensor, which activates when the gate senses resistance before reaching the end position.

Rolling code Keeloq 433.92Mhz – our company's remote controls are protected with a variable code in the Keeloq encryption system, you can only log in to HATO drives, this is an additional security against logging in foreign, unsecured remote controls.

CE + declaration of conformity – HATO confirms that the product meets the requirements of European Union directives.

Guarantee - 24 months.

TECHNICAL SPECIFICATIONS :

• Supply voltage: AC 230V 50Hz
• Engine power : 160 W
• Gate moving speed: 12 m/min
• Maximum gate weight: 600 kg
• Remote control distance: ≥ 30 m
• Engine speed: 1400 rpm.
• Output torque: 10 Nm
• Noise : ≤ 60 dB
• Control unit: HEL B11
• Remote control battery type: 23A (12V)
• Frequency: 433.92 MHz with rolling code
• Operating temperature: -40°C ~ +70°C
• Dimensions : 263mm x 215mm x 270mm

Included:

• HATO 400Y drive
• Fitting elements
• HELB11 control unit
• photocells
• LED warning lamp
• remote
• assembly instructions with warranty card
