RT-H 433.92MHz superheterodyne radio receiver

Description

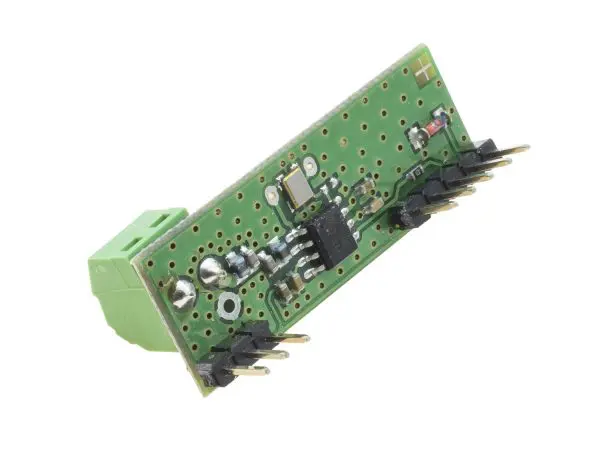

New version of the radio receiver with better sensitivity and resistance to radio interference, fully interchangeable with RT1. It operates at a frequency of 433.92 MHz with OOK and ASK modulation. Its design is based on a system that includes, among others: VCO generator and PLL synthesizer. It works properly with power supply from 3V to 5V. It can be used in control systems, data transmission and alarm applications. Ultimately, it is intended to work with our transmitters.

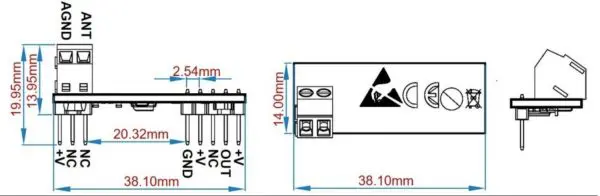

Description of pins (from the right):

• VCC(+5V) / +5V power supply
• antenna GND / antenna ground
• antenna / antenna input
• GND / receiver ground
• VCC(+5V) / +5V power supply
• NC not connected / not used
• data output / signal output m.f.
• VCC(+5V) / +5V power supply

Technical data :

Working frequency: 433.92MHz
Modulation: ASK, OOK
Receiver sensitivity: <-109dBm
Bandwidth -3dB: 330kHz
Supply voltage(Vcc) : 3V-5V
Power consumption : <7mA
Output high: >0.8*Vdd
Output low: <0.2*Vdd
Working temperature : -20°C / +50°C
Libra : 3.6g / 3.6g / 3.3g
Radio way: ELDRIM 433MHz
