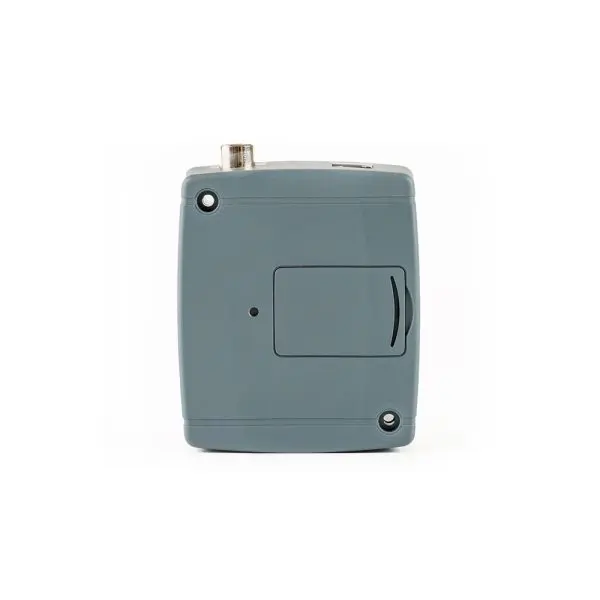

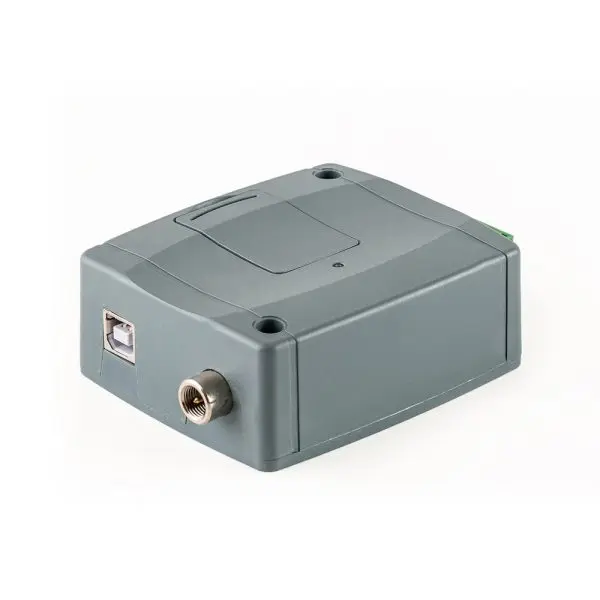

GSM Gate Control PRO 1000 – 3G controller

Description

GSM Gate Control Pro 1000 3G controller

Main features:

• 3G/2G communication
• Control of gates and barriers via a mobile phone, smartphone application or GSM connection
• Possibility to control two different gates or barriers with the same device
• 1000 users variant
• Notification sent if a gate or barrier fails to open or close
• View the status of open/closed gates or barriers on the smartphone app
• Reporting the status of 4 contact inputs by e-mail, SMS or telephone
• Sends ringer activity to your mobile phone
• ONVIF camera support, shares photos from the camera on the smartphone application
• Configurable user permissions and entry periods
• Configurable automatic time control
• Log events and send reports by email

Technical Specifications:

• 3G/2G/GSM transmission channel
• Frequency band 900/2100 MHz @UMTS 900/1800 @ GSM / GPRS
• Operating temperature -20 ºC – +70 ºC
• Supply voltage 12-30 VAC/DC
• Current consumption (maximum) 500 mA at 12 VDC
• Current consumption (nominal) 120 mA at 12 VDC
• Housing Plastic
• Clamping connector design Connectable
• Dimensions 84x72x32 mm
• Weight 200 g

Application area:

automatic gates, garage gates, barriers, parking lots, garages, multi-storey car parks, residential parks, other inspections

Entries

• Contact inputs 4
• Configurable inputs (NO/NC) yes
• Adjustable input sensitivity yes

Exits

• Relay outputs 2)
• Output control via free GSM connection yes

Notifications

• GSM voice connection yes
• Sending SMS messages yes
• Sending emails yes
• Active notification yes

programming

• USB/IP programming method
• Programming software yes

​Users

• User telephone numbers for forwarding incoming SMS messages 1
• User telephone numbers for reporting 4
• User telephone numbers for exit control 1000 / Unlimited

Other features

• Built-in internal clock yes
• Safeword yes
• Event logs / number of events stored Yes / 1200
• Caller ID yes
• Mobile application yes
• Individual email sending with a predefined message yes
• Individual sending of SMS to users' phone numbers with a predefined message yes
• Periodic test report yes
• IP camera support yes

Files to download:
